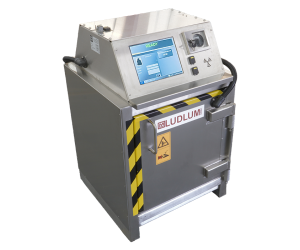

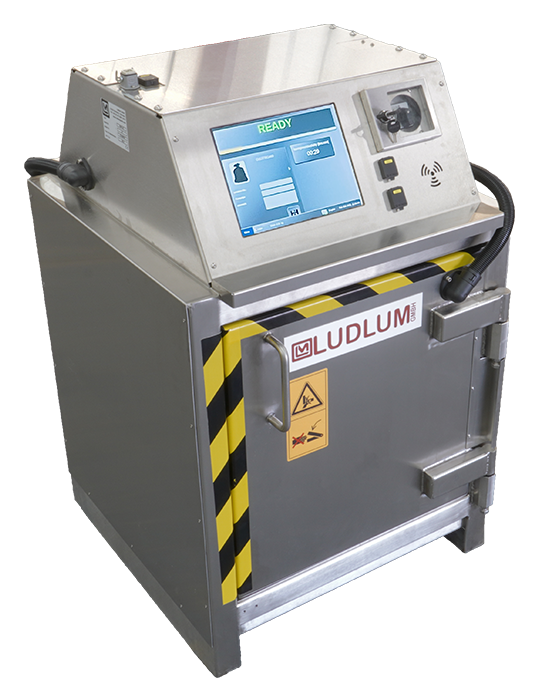

HWM-65
Small Article Monitor
Features
- Housing with Pass-Through Design and Optimized for Minimal Radiation Streaming
- Reduced Dead Zones: > 70% Coverage (Inner Chamber to Detector Size)
- Intuitive Operating Software That Is Easy to Use
- Export of Measurement and Parameter Data in XML Format via USB
- Energy Filter Settings to Optimize Discrimination of Background Radiation
- Integrated Mini-UPS for Measurements During Mains Power Outage
- Ergonomically Positioned Touch Operated Display
- Access to Historical Measurement Data via Integrated Database
- Access to Ludlum GmbH Test Tool Software for Detector Analysis
- Optionally Also Available as the HWM-65S for Limited Installation Space
Free Release Monitor for Reliable Gamma Detection in Smaller Items of up to 100 kg
The HWM-65 is designed for the measurement and release of parts and material from controlled areas. Utilizing two doors with an interlock system, this tool is ideal as an automated release measuring system.
- 6 gamma plastic detectors for complete 4π coverage
- 25 mm (1 in.) lead shielding
- Built-in weigh scale for up to 100 kg (220 lb)
- Two door interlock system with the option to use one door only
- Stainless steel housing with cassette design for minimal radiation streaming
- Integrated 12 in. touch-screen display
- Fully automated measuring process with user guidance
- Nuclide composition suggestion from multichannel energy analysis (MCEA)
- Network capability for remote monitoring and supervision
Specifications
| Standards | The monitor is compliant with the following standards: CE, CSA / UL or EMC, ISO11929 |
|---|---|
| Detectors | 6x gamma plastic detectors Detector volume: > 36 L (1.27 ft3) Direction connection of each detector to the PC via USB |
| User Software | Intuitive operator software with touch-screen display, fully automated measurement process with user guidance, indications of results and measurement material position on the display. Web based for remote access. |
| Electronics | Integrated illumination in the chamber, status-LED, interlock-relays with interface to external units Option: integrated camera for measuring goods |
| Housing | Stainless steel |
| Sensors | 2 door sensors with interlock Integrated weigh scale |
| Ext. Dimensions (H x W x D) |
1,160 x 694 x 808 mm (45.7 x 27.3 x 31.8 in.), incl. handles |
| Chamber Volume (H x W x D) |
400 x 400 x 400 mm (15.75 x 15.75 x 15.75 in.) 65 L (2.3 ft3) |
| Shielding | Standard: 25 mm (1 in.) lead Option: 50 mm (2 in.) lead |
| Weight | Standard: approx. 970 kg (2,140 lb) With 50 mm (2 in.) lead: 1,520 kg (3,350 lb) |
| Power Supply | 24 V via ext. 110 - 240 V power adapter Uninterruptable power supply (UPS) to bridge loss of mains electrical power |
